Aluminum Furnace Refractory: Corundum, Metal Penetration and Repair

Aluminum furnace refractory rarely fails from heat alone. It fails because molten aluminum, magnesium, fluxes and oxygen react with the lining and slowly turn it into something else. This guide explains what attacks the lining and how to choose between castables and bricks. It also covers anti-wetting additives, hot repair and the back-up insulation.

What attacks an aluminum furnace refractory

Most linings in contact with aluminum are alumina-silica materials. They are inexpensive and easy to install, but they contain silica, and silica is the weak point.

A study by The Ohio State University with NADCA on refractories for aluminum die casting explains the mechanism. Corrosion mainly occurs at the melt line, where molten aluminum reacts with the refractory oxides to form corundum and elemental silicon. The authors note that high-alumina refractories, with 60 to 85 percent Al2O3, are generally used at the melt line. Even so, their free silica or mullite is still attacked by the metal.

Alloy chemistry also decides how fast an aluminum furnace refractory wears. The same study’s thermodynamic modeling shows that both Al2O3 and SiO2 are attacked by magnesium and strontium. Phosphate compounds, used as binders in some castables, react with several alloying elements at melting temperatures. CaO, on the other hand, did not interact with the common alloying elements.

Operating practice adds to the attack. An article in Foundry Management & Technology on aluminum furnace corundum lists four root causes: high temperatures, the presence of oxygen, alloy composition, and the use of fluxes and fluoride salts. It names doors, openings, flue areas and burner cones as typical problem areas, because of excess oxygen. Rear walls and the bellyband also suffer, since cleaning there is harder. Our article on cryolite in aluminum production covers the fluoride side of that equation.

Corundum growth and metal penetration

On an aluminum furnace refractory, corundum starts as a reaction layer and keeps growing. The Ohio State paper notes that the build-up can significantly reduce furnace capacity. Removing it, either mechanically or with wall-cleaning fluxes, may damage the refractory surface. That damage reduces the insulating properties of the lining and, therefore, furnace efficiency.

Metal penetration goes hand in hand with corundum. As temperature rises, aluminum becomes less viscous and penetrates the refractory matrix more easily. A 2020 review in the journal Materials adds that magnesium lowers the viscosity of the molten alloy, which increases penetration. The same review reports two volume changes that crack the lining:

• Reduction of SiO2 by aluminum involves a volume contraction of as much as 26 percent.
• Formation of spinel (MgAl2O4) in Al-Mg melts causes a 17 percent volume expansion.

The review is also clear on composition: the higher the SiO2 content, the greater the corrosion depth. A higher Al2O3 to SiO2 ratio improves resistance to aluminum attack. For an aluminum furnace refractory, silica content is therefore the first number to check on any data sheet.

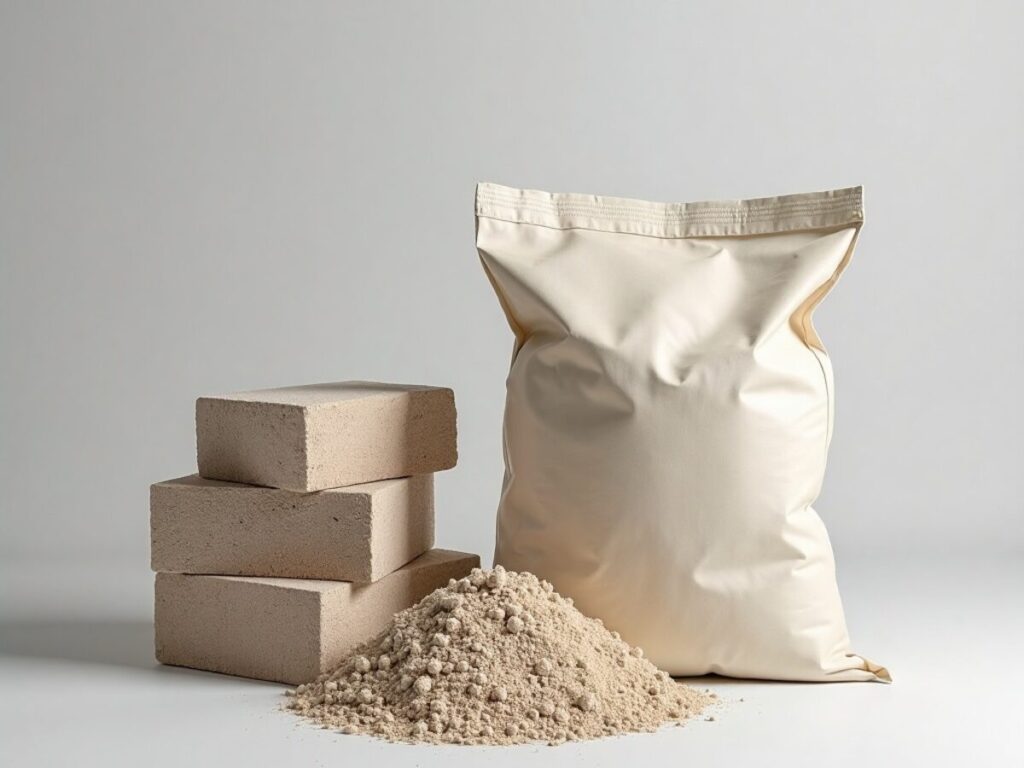

Castables vs bricks for the metal contact zone

Both forms work in aluminum service. The choice depends on the zone, the shape and how fast you need the furnace back.

In the hearth, lower sidewalls and bellyband, low-joint monolithic linings are common. Bricks still make sense in areas that need quick, predictable replacement. Either way, ask for the full chemistry, the binder type and the recommended dry-out schedule before ordering. A rushed dry-out can damage a new lining before it ever sees metal.

Anti-wetting additives: what they do and their limits

Non-wetting additives reduce how well molten aluminum wets an aluminum furnace refractory, so less metal enters the pores. The Ohio State paper lists barite (BaSO4), fluorspar (CaF2), aluminum fluoride (AlF3), wollastonite and boron compounds. These additives react to form complex phases such as hexa-celsian, which reduce wettability and metal penetration.

The 2020 review adds detail. It describes BaSO4 as the most effective additive when the material is fired between 815 °C and 1050 °C. In one test it summarizes, white fused mullite with BaSO4 or CaF2 alone still cracked in contact with an Al-5Mg alloy at 850 °C for 96 hours. However, a sample with both additives together did not crack. That sample also showed lower flexural strength than the base material, so there is a trade-off.

Two practical limits follow. First, the Foundry Management & Technology article warns that non-wetting agents lose effectiveness as temperatures rise. Overfiring and poor temperature control therefore undo the additive. Second, results depend on the alloy, so an aluminum furnace refractory that works with low-magnesium alloys may struggle with high-magnesium melts. Ask the supplier which alloys and temperatures the grade was tested against.

Temperature control protects the lining as much as any material choice. The same article notes that excess temperature can come from overfiring, poor furnace control or thermocouple placement. A recessed thermocouple can under-read the real temperature by a wide margin. Check thermocouple position and calibration at every relining, and keep burner settings within the limits the refractory supplier gives.

Hot repair and the insulation behind the aluminum furnace refractory

Small damage grows quickly once metal finds a path. A planned repair routine is cheaper than a full reline. The Foundry Management & Technology article puts it plainly: a regular maintenance schedule is essential.

1. Clean corundum and dross build-up regularly, before it bonds deeply into the wall.
2. Inspect the melt line, bellyband, door jambs and burner area at each cleaning.
3. Fill cracks, spalls and eroded spots with a refractory patching paste suited to hot repair.
4. Follow the paste’s heat-up instructions before metal returns to the repaired area.
5. Record each repair to see which zones fail first and plan the next reline.

Behind the working lining sits the insulation. Ceramic fiber board and blanket reduce shell temperature and heat loss, but only while they stay dry and free of metal. If the dense lining cracks and metal reaches the back-up layer, insulation value drops. For grades and temperature classes of blanket, read our guide to ceramic fiber blanket grades and uses.

AL-LINX supplies refractory castables and bricks, refractory patching paste and ceramic fiber board for the back-up layer.

FAQ on aluminum furnace refractory

Why does corundum form at the melt line?

There, molten aluminum, oxygen and the refractory meet. The metal reduces silica in the lining and forms corundum and silicon.

Are high-alumina linings immune?

No. They resist better than high-silica materials, but any free silica or mullite can still react.

Do fluxes damage the lining?

They can. Fluoride salts are among the listed root causes of corundum, so dose fluxes carefully.
