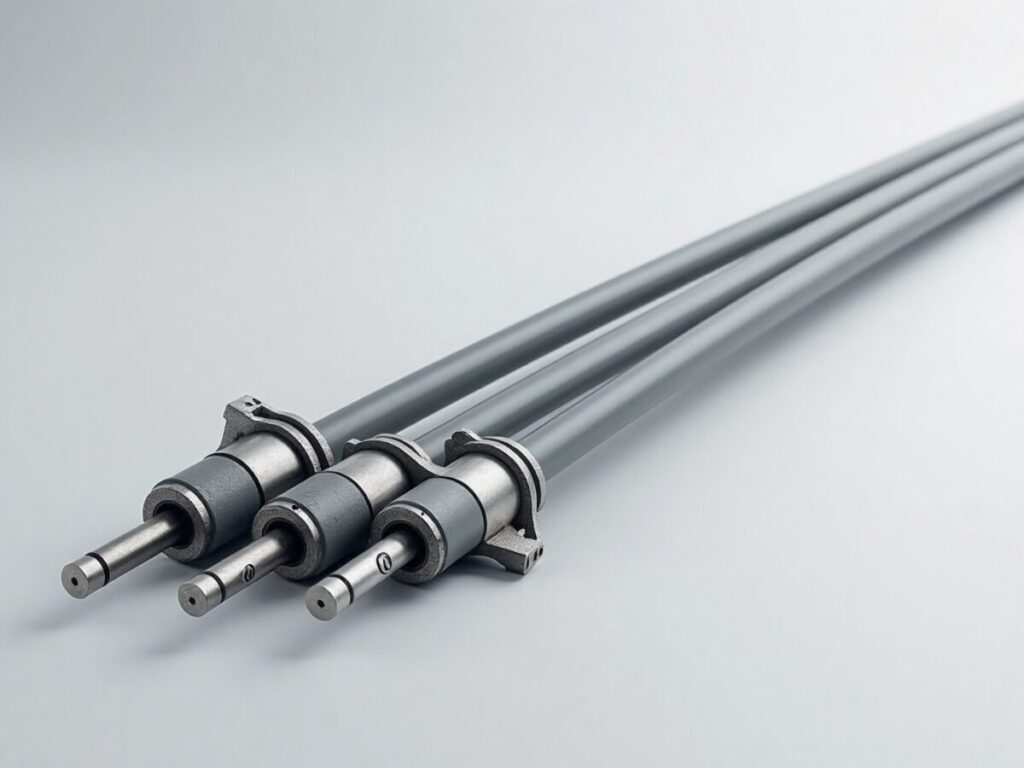

Molten Aluminum Thermocouple: Types, Tubes, Placement and Checks

A molten aluminum thermocouple looks like the simplest instrument in the melt shop. Yet a sensor that reads a few degrees off, or responds too slowly, quietly drives energy use, hydrogen pickup and casting scrap. This guide covers sensor types, protection tube materials, placement, response time and the calibration checks that keep readings honest.

Choosing a molten aluminum thermocouple type

Most furnaces, ladles and holding baths use base-metal thermocouples. The choice is mainly between Type K and Type N, with platinum types reserved for special cases.

The UK National Physical Laboratory groups the standardized types clearly in its introduction to temperature measurement (NPL). The five base-metal types (J, T, E, K and N) are relatively inexpensive and can be used up to about 1200 °C. The platinum-based types R, S and B are expensive but more stable, and work up to about 1600 °C. Aluminum melts sit well inside the base-metal range, so Type K is the usual default for a molten aluminum thermocouple.

In addition, the output is small. NPL notes a typical signal of only about 40 µV per degree of temperature difference. Therefore, a loose terminal or the wrong compensating cable can cost you more accuracy than the sensor itself.

Also keep in mind that wire composition varies between suppliers. The NIST ITS-90 thermocouple database warns that substantial composition variations occur within a letter type, particularly for J, K and E. For that reason, buy sensors, cable and instruments specified to the same letter type, and ask the supplier which reference tables the readout uses.

A practical rule for selection:

• Type K: the default for furnace and ladle control. Wide availability and low cost.
• Type N: an option some plants specify for stability; ask the supplier for drift data.
• Type R or S: only for reference or laboratory checks, where cost is justified by stability.

Protection tube materials and why they fail

The wire never touches the metal. Instead, a protection tube carries the junction into the bath, and that tube is what wears out. So the tube material decides the service life of a molten aluminum thermocouple far more than the element does.

Coated cast iron tubes

Cast iron tubes with a ceramic coating are the traditional choice. However, a patent on thermocouple protection tubes (US4796671) lists their weaknesses. The iron tends to dissolve into the melt and degrade it. The coating adheres poorly, so it must be reapplied daily. And the tubes are heavy to handle.

Ceramic tubes

The same document notes that silicon nitride and silicon carbide ceramics have been replacing metal tubes. Ceramics do not dissolve in aluminum, but they are more sensitive to thermal shock and impact. As a result, they suit fixed positions better than tubes that get knocked by skimming tools.

Typical failure modes

• Dissolution: uncoated iron or steel is attacked by liquid aluminum and contaminates the bath with iron.
• Coating loss: once the wash wears through, the metal tube fails quickly and the element follows.
• Thermal shock: cold ceramic tubes plunged straight into the bath can crack.
• Mechanical damage: skimming, charging and dross cleaning break tubes that sit in the traffic path.
• Element contamination: NPL warns that some sheath elements, such as manganese, can diffuse and contaminate the wires.

A non-wetting wash extends the life of the metal tube on a molten aluminum thermocouple, and of your tools. For example, a boron nitride coating applied to a clean, preheated tube reduces metal pickup and makes dross easier to remove.

Placement and immersion depth

A good sensor in the wrong spot still gives the wrong number. Accordingly, placement deserves as much attention as purchasing.

NPL’s guidance for liquids is specific. The immersed length should be at least 20 times the diameter. Where a protective well is used, that rule applies to the well’s diameter, not just the probe. Moreover, adding 50% more immersion can cut the immersion error by as much as a factor of ten.

NPL also gives a simple field test. Under steady conditions, withdraw the sensor in steps of 2 cm and watch the reading. If it drops noticeably, the immersion is not enough.

On the shop floor, that translates into a few rules:

• Keep the tip below the lowest working metal level, not just the full-bath level.
• Avoid dead corners and spots right under a burner flame.
• Keep tubes out of the charging and skimming path.
• Use the same position and depth every time on portable dip probes.

In a holding furnace with sidewell, the control thermocouple location matters. Consequently, agree it with the furnace supplier before the refractory is installed.

Response time of a molten aluminum thermocouple

Every layer between the junction and the metal adds delay. A thick tube protects the element, but it also slows the reading. NPL states this trade-off directly: protective tubing protects the sensor, though it also slows the response to temperature changes.

For a fixed control sensor, a slow but robust tube is often acceptable, because bath temperature changes gradually. By contrast, a hand-held dip probe needs a fast response, otherwise operators pull it out before it settles. In practice, the right choice depends on the job:

• Use heavy tubes for continuous control in furnaces and holding baths.
• Use thinner tubes or mineral-insulated sheaths for spot checks and ladle readings.
• Wait for a stable reading before logging, not a fixed number of seconds.

Temperature also feeds degassing practice. If treatment runs at the wrong temperature, results drift. Our article on graphite rotors for aluminum degassing covers that side of the process.

Molten aluminum thermocouple calibration checks

Thermocouples drift. NPL explains that above about 500 °C, chemical and physical changes occur increasingly rapidly and may show as permanent calibration drift. Furthermore, the voltage is generated along the length of the wire where there is a temperature gradient, not at the tip.

That second point has a practical consequence. A used sensor may read differently once its damaged section sits in a different gradient. Therefore, an in-place comparison against a reference is more useful than pulling the sensor for a bench test.

A simple routine works for most foundries:

1. Keep one certified reference probe and readout, used only for checks.
2. Insert it next to the control thermocouple at the same depth.
3. Record both readings once stable, and log the offset.
4. Replace the control sensor when the offset exceeds your process tolerance.
5. Have the reference probe calibrated by comparison at an accredited laboratory.

NPL also cautions that two nominally identical sensors can fail at very different times. So trend the offsets instead of trusting a fixed replacement interval.

FAQ

Which type is best for aluminum melts?

Type K covers most furnaces and ladles. Platinum types are better kept for reference checks.

Why does my tube fail at the metal line?

That zone sees oxide, dross, temperature swings and tool contact. A non-wetting wash and careful placement help.

How often should I check a molten aluminum thermocouple?

Set the interval from your logged offsets. Check more often when a sensor is new or recently moved.
