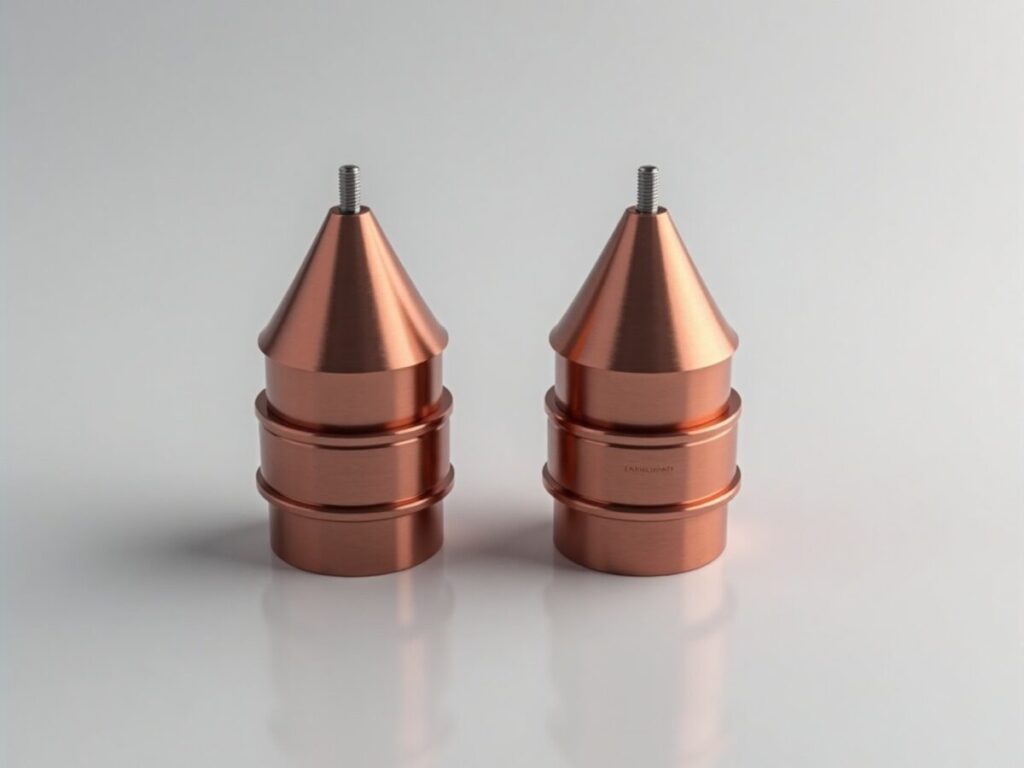

The die casting plunger tip is a small, consumable part that sets the pace of a cold-chamber cell. When it wears, metal blows past it, shots become inconsistent and the shot sleeve suffers. This guide compares beryllium copper and steel tips, explains the usual causes of wear and flash, weighs beads against liquid lubricant, and covers safe handling of beryllium copper.

What the plunger tip does in a cold-chamber machine

In cold-chamber high pressure die casting, a ladle pours aluminum into the shot sleeve. The plunger then drives the metal into the die, first slowly and then at high speed. Finally, it holds intensification pressure while the casting solidifies.

The tip has two jobs at once. It must seal against the sleeve so metal cannot escape backwards, and it must survive repeated contact with molten aluminum. A plunger tip patent filed by Kubota and Toyota describes the conditions well. Tips must have abrasion resistance and cooling properties. Great sliding resistance is produced between the tip and the sleeve, so a graphite oily or water-soluble lubricant is sprayed onto the sliding surface for every shot. The same document describes a hollow tip with an internal cooling water structure to prevent the rise of temperature.

In short, the die casting plunger tip works at the meeting point of heat, friction and pressure. Material, cooling, clearance and lubrication all have to work together.

Beryllium copper vs steel tips

The Kubota and Toyota patent notes that tips are generally made from a high-temperature tool steel (SKD-61) or beryllium copper. Each has a clear profile:

The softness of beryllium copper is both its strength and its weakness. A patent on materials for die casting tooling components states that beryllium-copper plungers are much softer than the shot sleeve. Any variation in fit and function therefore results in extensive wear, spalling or galling of the plunger. The same patent cites a NADCA finding that a Rockwell hardness of 46 to 50 is optimum for shot sleeves.

In practice, many cells choose beryllium copper because a worn tip is cheaper than a scored sleeve. Steel tips can work well where cooling and lubrication are tightly controlled. Either way, choose the die casting plunger tip together with the sleeve, not separately.

Why tips wear and flash forms

Flash behind the tip, often called blow-by, means metal is getting into the clearance. Once it does, it scores the tip, the sleeve or both, and the gap grows with each shot. The Kubota and Toyota patent describes this mechanism for an earlier design: when the seal does not expand enough, molten metal enters the gap between the sleeve and the sliding part and shortens service life.

The usual causes, roughly in order of how often plants find them:

1. Wrong or worn clearance. Tips that are undersize for the sleeve, or sleeves worn oval near the pour hole.
2. Poor cooling. Low water flow or blocked channels let the tip expand and gall, or run hot and soften.
3. Misalignment. A plunger rod that is not concentric with the sleeve loads one side of the tip.
4. Lubrication gaps. Missed or uneven doses lead to dry sliding and pickup.
5. Contamination. Dross, oxide skins or sludge from the ladle act as abrasives.

When you replace a die casting plunger tip, inspect the sleeve too. Check the bore at the pour hole and at the die end, and look for erosion, heat checking and soldered aluminum. A new tip in an oval sleeve only buys a few shifts.

Measure the tip and sleeve at each change, and log shot counts. A tip that fails early usually points to a cell problem, not a part problem. Moreover, alloy choice affects the metal temperature and soldering tendency in the sleeve. Our overview of aluminum alloy series covers the families used in die casting.

Plunger lubrication: beads or liquid

Plunger lubricant reduces friction and wear between the die casting plunger tip and the sleeve. It comes in two main forms. Liquid lubricants are sprayed or dripped onto the tip before each shot. Beads or granules are dropped into the sleeve, where they melt and spread a film as the plunger advances.

Liquids are simple to automate and easy to meter in small doses. However, they need clean nozzles and steady pressure, and overspray ends up on the machine and the floor. Beads put the lubricant where the sleeve meets the metal, and they leave less mess. On the other hand, they need a reliable dispenser and a dose matched to sleeve size.

Whatever the form, quantity matters. A Brunel University study on scatter in die-cast properties found that when liquid metal enters the shot chamber, it reacts with organic compounds in the plunger lubricant. That pyrolysis produces gases and a carbonaceous residue. The authors propose that this residue forms non-metallic inclusions in the casting. As a result, aim for the smallest dose that keeps the tip from galling. More is not safer.

Handling a beryllium copper die casting plunger tip safely

Solid beryllium copper is not a hazard during normal handling. The risk comes from dust and fumes released when tips are machined, ground, polished or welded. The tooling patent cited above notes that beryllium-copper components need a clean room environment for fabrication.

The U.S. OSHA beryllium standard (29 CFR 1910.1024) is a useful reference even outside the United States. It sets a permissible exposure limit of 0.2 μg/m³ as an 8-hour time-weighted average and a short-term limit of 2.0 μg/m³ over 15 minutes. It also requires the following practices:

• Clean surfaces by HEPA-filtered vacuuming or other low-dust methods.
• Do not allow dry sweeping, brushing or compressed air for beryllium-contaminated surfaces, except under the specific conditions the standard allows.
• Provide washing facilities, and keep eating, drinking and smoking out of regulated areas.

For tips that are only installed, used and returned, keep reworking out of the cell. Send worn tips to a shop equipped for beryllium alloys, and check the regulation that applies in your own country.

AL-LINX supplies beryllium copper plunger tips to your sleeve dimensions, along with die release agents and plunger lubricants.

FAQ on the die casting plunger tip

How often should I change the tip?

Change it on measured wear, not on a fixed date. Log shots and diameter, and set the limit from your own data.

Can I use a steel tip in a worn sleeve?

It is risky. A harder tip in an irregular sleeve is more likely to score it further.

Does more lubricant protect the tip better?

Only up to a point. Excess lubricant adds residue and gas to the shot, so tune the dose with the tip wear data you already log.
