Boron Nitride Coating for Molten Aluminum: Where and How to Apply It

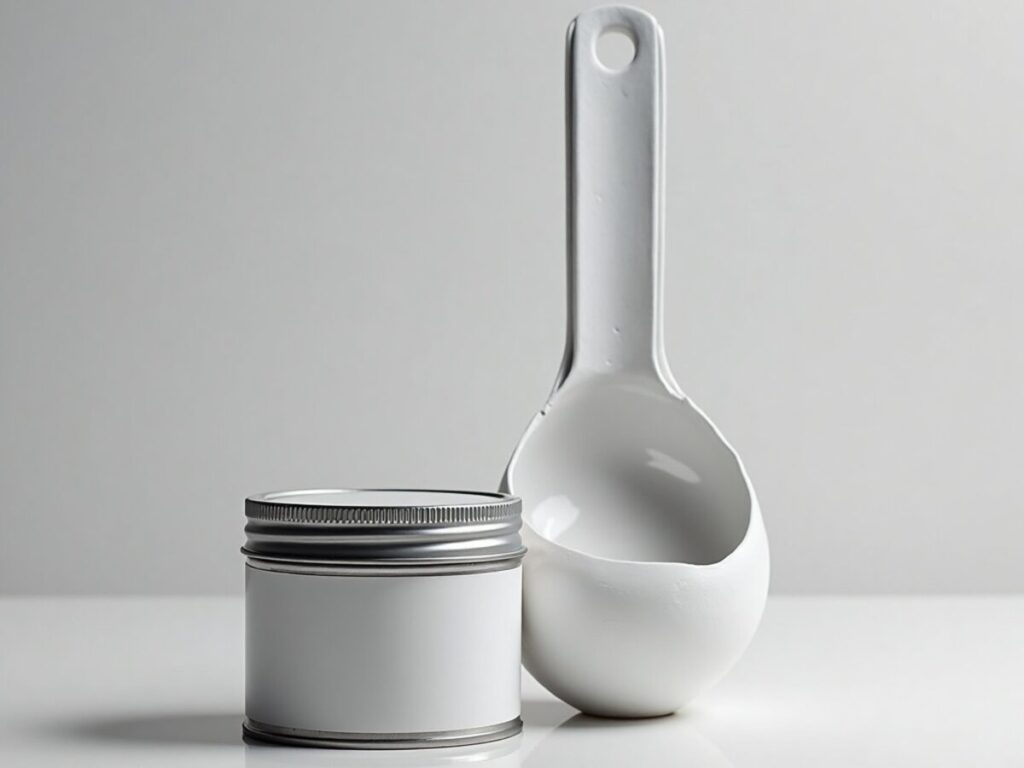

A boron nitride coating keeps molten aluminum from sticking to ladles, launders, thermocouple sheaths and molds. It is a thin, white layer. Yet it decides how much metal you chip off tools each shift and how long steel parts last in the bath. This guide explains why boron nitride resists aluminum, where to use it, how to prepare and coat a surface, and when to recoat.

Why a boron nitride coating resists molten aluminum

Hexagonal boron nitride (h-BN) is a ceramic with a layered structure. It combines high temperature resistance with good chemical stability. For that reason, it is also used as a refractory for high-purity alloy melting.

The key property for the melt shop is wetting. A liquid wets a surface when its contact angle falls below 90 degrees. Above that angle, it beads up. In a sessile drop study published in the Journal of Materials Science, Shen, Fujii and Nogi measured initial contact angles of molten aluminum on h-BN of 120 to 140 degrees. In other words, aluminum beads up on boron nitride.

The same study adds an important nuance. Below 1173 K (900 °C), the oxide film on the aluminum drop prevented the contact angle from decreasing over time. At 1073 K (800 °C), the reaction between aluminum and BN was insignificant and adhesion was very weak. Above that range, however, aluminum reacted with BN to form aluminum nitride, and wetting improved. Thermodynamics also favors that reaction at lower temperatures, even if it is slow.

So a boron nitride coating is non-wetting at normal holding and pouring temperatures, but it is not inert forever. Overheating, long contact and mechanical wear all shorten its life.

Oxidation in air is less of a concern. A study in the journal Vacuum on h-BN thermal stability reports that h-BN platelets were stable up to about 1000 °C in air. Oxidation to boron oxide occurred between 1000 and 1200 °C, which is well above aluminum melt temperatures.

Where to apply it in the melt shop

Use BN wherever aluminum touches steel, cast iron or a refractory that it tends to wet or attack. Typical surfaces include:

• Dosing and transfer ladles. The coating limits metal build-up and iron pick-up from the ladle body.
• Launders, troughs and spouts. Metal skulls release more easily during cleaning.
• Thermocouple protection tubes. A clean sheath responds faster and lasts longer in the bath.
• Molds, ingot molds and casting tools. A boron nitride coating works as a release layer where a non-wetting surface is needed.
• Skimmers, stirrers and hand tools. Less sticking means less dross carried out on the tool.

Tools that rotate in the bath, such as degassing rotors, follow their own selection rules. See our article on graphite rotors for aluminum degassing for that equipment.

Surface preparation before the first coat

Adhesion depends on the surface underneath. A thick coat on a dirty part will flake off in the first few dips.

1. Remove old aluminum, oxide skins and dross by mechanical cleaning.
2. Remove oil, grease and loose rust. On steel parts, grit blasting or wire brushing gives a clean, slightly rough surface.
3. Repair cracks or holes in refractory parts before coating. The coating will not bridge them.
4. Preheat the part to remove moisture and to help the coating dry evenly.

Finally, mark coated parts and keep them apart from uncoated spares, so nobody dips a bare tool by mistake.

Do not skip the moisture step. Water trapped under a coating, or in a porous refractory, turns to steam on contact with molten metal. That is a safety hazard, not only a quality issue.

Applying a boron nitride coating step by step

BN coatings are usually supplied as a suspension in water or alcohol, often with a binder. Always follow the supplier’s data sheet for dilution, drying and cure. The general sequence looks like this:

1. Mix. Stir the suspension until the solids are fully dispersed. BN settles in the container.
2. Dilute if required. Use only the diluent the supplier specifies, and keep the ratio consistent from batch to batch.
3. Apply thin coats. Spray, brush or dip. Several thin, even coats adhere better than one heavy coat.
4. Dry between coats. Let each layer dry before the next one, warm parts dry faster.
5. Cure before use. Heat the coated part gradually so the binder sets and no moisture remains.

Thickness is a balance for any boron nitride coating. A layer that is too thin wears through quickly. A layer that is too thick tends to crack and flake, which can leave coating particles in the metal. In practice, uniform coverage with no bare spots matters more than total thickness.

For alcohol-based grades, treat the coating as a flammable liquid. Apply it in a ventilated area away from open flames and hot metal.

Recoat intervals and signs of wear

There is no universal recoat interval. It depends on temperature, contact time, metal flow and how the part is cleaned. Instead, set the interval from inspection:

• Aluminum starts to stick to the part, or skulls no longer release cleanly.
• The white layer shows bare metal, especially at edges and contact points.
• Iron or other contamination rises in spectrometer checks after ladle transfers.
• The coating flakes or cracks after cleaning.

Most plants end up with a routine: a full recoat after deep cleaning and quick touch-ups between shifts on high-wear areas. Write the routine down, so each shift applies the boron nitride coating the same way. Log the date for each tool, and then adjust the interval to the wear you actually see.

AL-LINX supplies boron nitride coatings together with the parts it protects, such as dosing ladles and thermocouples and protection tubes.

FAQ on boron nitride coating

Is the coating permanent?

No. It wears with contact, cleaning and temperature, so it needs regular inspection and recoating.

Can I apply it to a hot part?

A warm part helps drying, but follow the supplier’s temperature range. Very hot surfaces can make the coating blister.

Does it contaminate the melt?

Well-bonded thin coats are stable. Flaking from thick or poorly prepared layers is the main risk.
