Aluminum Melting Furnace Types: Which One Fits Your Charge and Output

Choosing an aluminum melting furnace starts with the charge, not the burner. Clean ingot, painted profile, chips and dross each behave differently in the bath. The wrong furnace turns that difference into melt loss. This guide compares reverberatory, tower, rotary tilting, crucible, induction and sidewell furnaces by the charge and production profile each one suits.

Start with the charge, not the aluminum melting furnace

Before comparing designs, describe what goes in and what comes out. The answers rule out half the options before any quote arrives.

Four questions narrow the field quickly:

• Charge type. Primary ingot and clean returns, or light scrap, chips and dross?
• Throughput. A steady flow of metal all shift, or batches at intervals?
• Alloy changes. One alloy all week, or several per day?
• Downstream process. Die casting cells, a casting line for ingot, or a holding furnace that feeds a launder?

Energy matters too, because the aluminum melting furnace dominates the bill. A U.S. Department of Energy report on energy use in metalcasting cites published data that place melting and holding at 77 percent of the delivered energy of aluminum facilities. The same report says melt losses can vary from less than 1 percent to more than 5 percent with similar charge materials. Furthermore, it attributes those differences mainly to furnace design rather than to the charge itself.

Reverberatory furnaces: wet bath and dry hearth

The reverberatory furnace is the workhorse aluminum melting furnace of the industry. Burners fire over the bath, and the roof radiates heat down onto the metal. In a wet bath (wet hearth) design, the charge goes directly into molten aluminum. In a dry hearth design, it sits on a sloped hearth first. There it preheats and starts to melt before it flows into the bath.

According to a 2009 ACEEE paper on foundry melting efficiency, the dry hearth recovers some heat and drives off moisture and contamination before the charge reaches the bath. That reduces the risk of splashing or explosions. The wet hearth, by contrast, suits scrap with a large surface-to-volume ratio, which oxidizes unless it melts quickly.

The trade-off is efficiency and oxidation. The same paper puts typical reverberatory efficiency at 20 to 25 percent, with most of the heat lost through the hot flue gases. Because a large bath surface is exposed to furnace gases, dross forms readily. The DOE report adds that a properly maintained wet reverberatory gas furnace uses an average of 1,350 Btu per pound of molten aluminum.

A reverberatory aluminum melting furnace makes sense when you need a large metal reservoir, mixed charge sizes and simple operation. Expect to invest in skimming, fluxing and burner tuning to keep losses down.

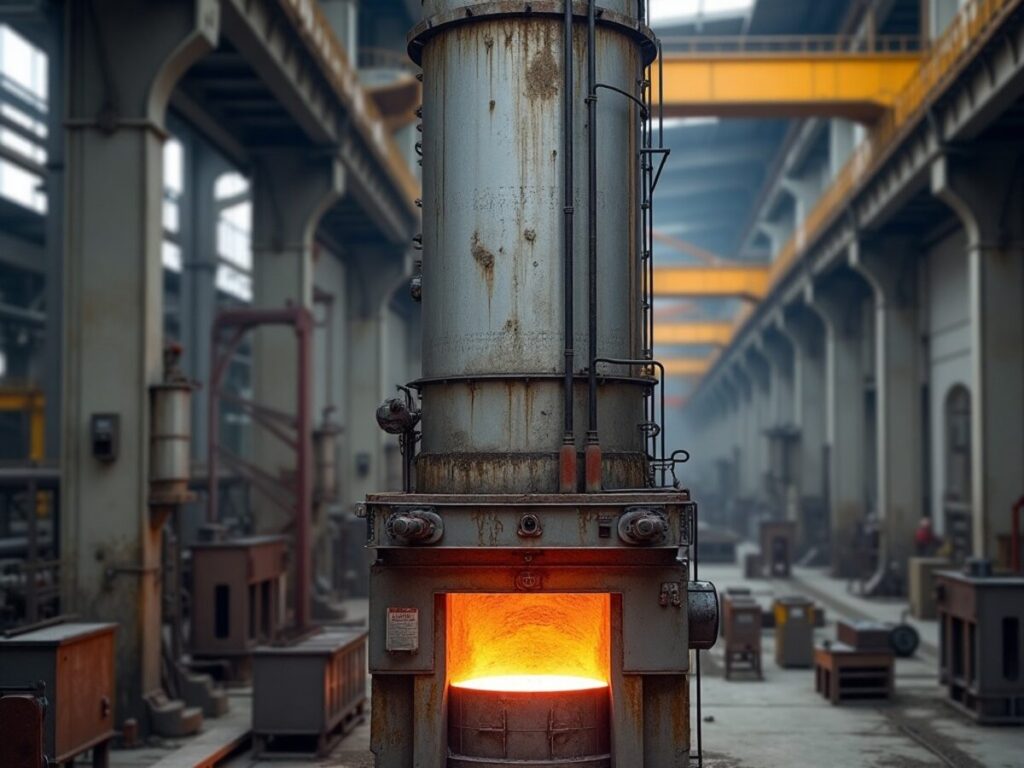

Tower (shaft) melters for clean, high-volume charge

A tower or stack melter is a modified reverberatory design. A skip charger lifts the charge into a vertical shaft above a dry hearth. Exhaust gases rise through the shaft and preheat the metal before it melts and runs into the holding bath.

The DOE report lists the advantages. The bath stays close to tapping temperature because no cold metal goes into it. The charge meets low-oxygen gases, since combustion has already happened over the bath, so oxidation drops. High melt rates come from a relatively small furnace. In its comparison, the report estimates melt loss at 5.5 percent for a reverberatory furnace and 1.25 percent for a stack melter. Meanwhile, the ACEEE paper cites stack melter efficiencies of 40 to 50 percent.

There are limits. The stack and charging mechanism may exceed 20 feet in height, and the added equipment needs maintenance. In addition, a tower works best with charge that flows down the shaft: ingot, sows, gates, runners and clean returns. Fine, oily or loose scrap does not suit it. For die casting plants with steady demand and in-house returns, this aluminum melting furnace is usually the first one to evaluate.

Rotary tilting furnaces for dross and dirty scrap

Rotary furnaces turn the charge in a refractory-lined drum, so heat reaches all of it and salt flux mixes in. They are the standard route for dross and contaminated scrap that a reverberatory furnace would mostly oxidize.

The tilting version solves the main weakness of the fixed-axis drum. A Total Materia article on the tilting rotary process explains that a fixed-axis furnace needs a high salt-to-oxide ratio to keep the slag liquid. Also, opening and closing its tap hole is slow and labor intensive. A tilting furnace pours the aluminum by tilting, while the dry slag stays inside. The furnace then rotates and tilts at the same time to discharge the slag. The article lists aluminum dross recycling and light scrap among its applications.

A rotary tilting aluminum melting furnace fits when your charge includes dross, swarf or mixed light scrap. Before buying, plan how you will handle and dispose of the salt slag.

Crucible, induction and sidewell holding furnaces

Not every plant needs a large melter. Crucible furnaces suit small batches and frequent alloy changes. The ACEEE paper notes that they are the least expensive option for small batch melting of nonferrous metals and are popular in jobbing and die casting foundries. However, their efficiency is low, typically 7 to 19 percent, and the crucibles are relatively short-lived.

Induction furnaces heat the metal electrically, with no flame over the bath. As a result, they offer clean melting and electromagnetic stirring. They suit plants with reliable power and a need for quick alloy changes. A tilting crucible or induction unit also simplifies pouring into ladles.

The sidewell (or vortex) holding furnace solves a different problem. Burners heat the main hearth, while metal circulates through an open side well. Light charge such as chips or thin scrap goes into the well. The circulating flow draws it under the surface, so it melts without direct flame contact. This reduces oxidation of material that would burn on top of a bath. Chips still need pretreatment to remove oil and moisture before charging.

Aluminum melting furnace comparison at a glance

Whichever design you choose, melt quality still depends on what happens after melting. See our article on graphite rotors for aluminum degassing for the next step.

AL-LINX quotes the tower melting furnace, the rotary tilting melting furnace, the holding furnace with sidewell or vortex and the tilting crucible or induction furnace to your specification.

FAQ on aluminum melting furnace selection

Which furnace has the lowest melt loss?

In the DOE comparison, the stack (tower) melter had a much lower estimated melt loss than the wet reverberatory furnace. Actual results depend on charge, practice and maintenance.

Can a tower furnace melt chips?

Not well. Fine and oily charge does not flow down the shaft. A sidewell furnace with chip pretreatment, or a rotary furnace, is a better fit.

Do I need a separate holding furnace?

Often, yes. Separating melting from holding lets each furnace run at its best temperature and keeps metal ready for the casting cell.
