Aluminum Chip Recycling: Pretreatment, Melting and Real Yield

Aluminum chip recycling turns machining swarf, the scrap with the worst melt recovery in the plant, into usable metal. Done well, it keeps alloy in-house; done badly, it fills the furnace with oxide, smoke and dross. This guide covers why chips are difficult, how to pretreat them, how to melt them and how to measure yield honestly.

Why aluminum chip recycling is harder than it looks

Chips, turnings and borings are the same alloy as the part they came from. Yet they behave very differently in a furnace.

A study from AGH University in Archives of Foundry Engineering sums up the problem. Chips have a large surface covered by a thin layer of Al2O3. Consequently, they are much harder to remelt than profiles, sheet or ingot. That surface is also coated with the lubricants and emulsions used in machining.

A U.S. Department of Energy report reaches the same conclusion from the recovery side. It describes light-gauge scrap such as chips, turnings and borings as historically underutilized. The reason given is a high surface-to-volume ratio, which results in low melt recovery.

In practice, four contaminants cause most of the trouble:

• Oxide: every square millimeter of chip surface carries a film that ends up in the dross.
• Oil and coolant: they burn at the bath surface, create smoke and darken the flux.
• Moisture: water trapped in a chip pile is a steam explosion risk.
• Tramp iron: steel inserts, broken tools and fasteners raise iron in the melt.

Fines add a further hazard to aluminum chip recycling. The AGH paper notes that aluminum particles below 420 µm, suspended in air, pose a real explosion risk. It also warns that charging chips into a furnace at 750 to 800 °C can ignite such a mixture. Therefore, dust control and housekeeping belong in the process design from day one.

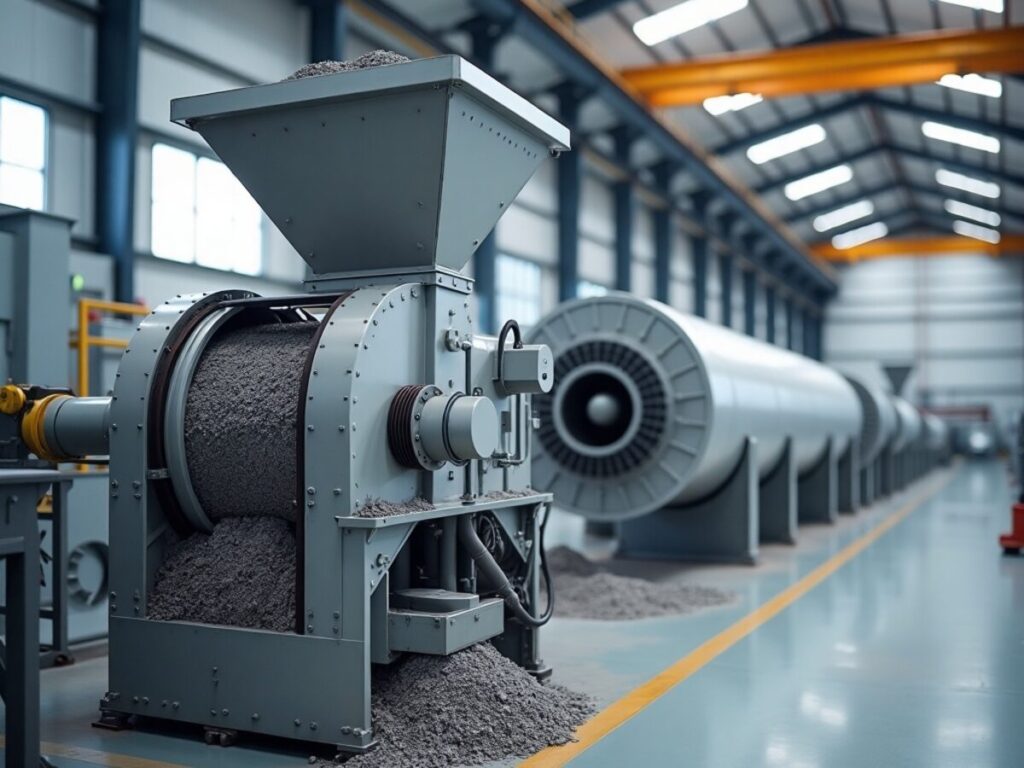

Crushing, separating and de-oiling

Pretreatment starts with getting the chips into a consistent, free-flowing form. Long, stringy turnings tangle, trap coolant and feed unevenly. As a result, most lines begin with a crusher that breaks them into short pieces.

Next comes separation. Magnets pull out steel, and screens remove oversize pieces and fines. A patent on chip melting systems (US9896739) points out a link between steps. Drying matters because moisture interferes with the magnetic separation needed to remove contaminants such as iron.

Free coolant is usually spun off before any heat is applied. A centrifuge recovers much of the fluid for reuse and lowers the load on the dryer. In addition, it reduces the smoke you would otherwise create downstream.

A typical sequence for aluminum chip recycling looks like this:

1. Segregate chips by alloy at the machine, before they mix.
2. Crush long turnings into short, uniform pieces.
3. Remove tramp iron magnetically and screen out oversize.
4. Centrifuge to remove free oil and coolant.
5. Dry or decoat thermally to remove residual organics and moisture.

Segregation is the cheapest step on the list. Once alloys mix in a chip bin, no pretreatment line can separate them again.

Drying and decoating: temperature and atmosphere

Thermal treatment removes what the centrifuge leaves behind. The US9896739 patent states that chips fed to a molten bath must be essentially free of moisture, at least for safety reasons. It also notes that drying is an expensive step, so dryer design matters.

The AGH study shows what happens when organics are not removed. Compacts made from uncleaned chips caught fire as soon as they touched the molten salt, producing flame and smoke. Afterwards, the salt turned dark grey, nearly black, and was hard to break. By contrast, thermally cleaned chips melted without any flame.

For aluminum chip recycling, the atmosphere during cleaning also mattered. In that study, carbon dioxide in the off-gas began to rise at about 300 °C, as the oil-based emulsions burned off. However, cleaning in air also oxidized the chips. At the lowest compaction pressure, those chips gave a recovery of only 57%.

Oxygen-free heating worked best. Chips cleaned this way reached recoveries of 88 to 90% at low compaction pressures. A two-stage treatment, first without oxygen and then in air at 350 °C, gave the best result: 94% recovery. Keep in mind these are laboratory figures on very fine sawing chips. Still, the direction is clear: remove organics, but limit oxygen while doing it.

Sidewell and vortex melting for aluminum chip recycling

Even clean chips oxidize fast if they float on the bath. The goal is to get them under the surface immediately. That is why chips are usually melted in a well outside the main hearth, not thrown through the furnace door.

In a sidewell or vortex well, a pump circulates hot metal and pulls the charge down into the bath. The US9896739 patent describes chips charged for submerged melting in a circulating vortex well. A holding furnace with sidewell or vortex lets you do this without exposing chips to the burner atmosphere.

Compaction is the other route. The DOE report found that consolidating fine scrap can improve metal recovery by as much as 20%. For loose, light material, a soft scrap baler or briquetting step can do this job before melting.

Flux helps the oxide separate from the metal. The AGH work used a sodium chloride and potassium chloride salt with 5 wt.% cryolite added. The cryolite helped strip the oxide film from metal droplets so they could merge. See our article on cryolite in aluminum production for background, and our range of fluxes and demagging agents for melt-shop grades.

Measuring yield in aluminum chip recycling

Yield claims are easy to inflate. So define the calculation before you compare equipment or suppliers.

• Basis: weigh chips as received, and again after drying, so oil and water are not counted as metal.
• Output: count only tapped metal, plus metal later recovered from dross, reported separately.
• Losses: track dross weight and its metal content per batch.
• Chemistry: check iron and magnesium in the product, since both can drift.

Also compare like with like. A line built for coarse turnings will not match a lab result on sawing fines. Moreover, recovered metal only has value if its chemistry fits a customer specification. For the market side, see our note on secondary aluminium sourcing, CBAM and the EU scrap duty.

FAQ

Can I charge wet chips straight into the furnace?

No. Moisture is a safety risk, and chips should be essentially dry before they reach the bath.

Is compaction worth it without a vortex well?

Often yes. Denser charge exposes less surface, and the DOE report links consolidation to higher recovery.

What equipment does a chip line need?

Typically a crusher, magnetic separator, centrifuge, dryer and a submerged melting well, sized to your chip volume.
